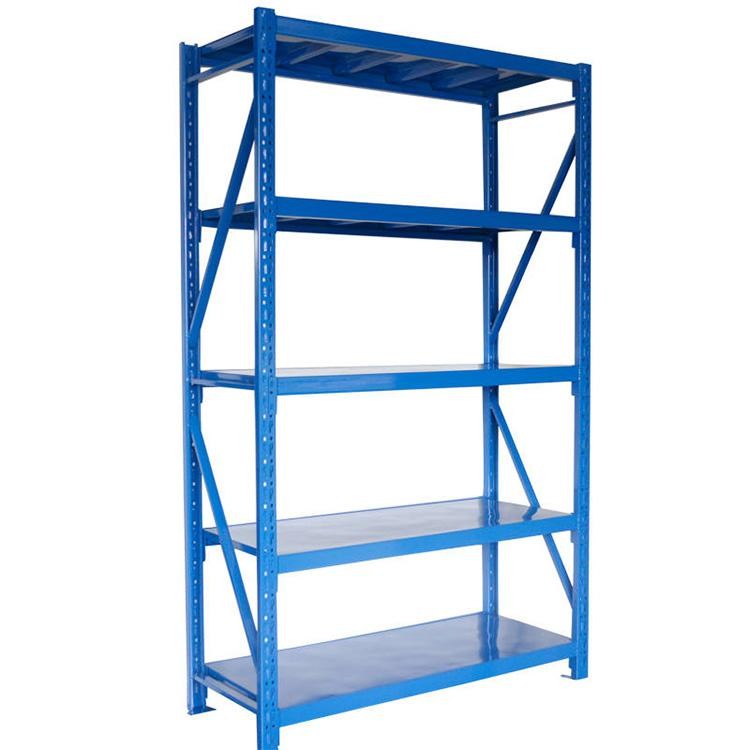

Easy Install Combination Light Duty Storage Rack with slotted angle
Description:
The light duty racking is easy to be assembled or disassembled, nice surface treatment,
usually being used in warehouse or supermarket for storage or
display. Loading capacity 50-150 kg per layer, multi-combination,
powder coated or Galvanized.
Specification:
Product Name | Easy Install Combination Light Duty Storage Rack with slotted angle |
Size(L*W*H) | 1200L*400W*2000H 1500L*400W*2000H 1500L*500W*2000H 2000L*400W*2000H 2000L*600W*2000H accept customized |
Material | steel |
Color | red,green,black,silver,any color |
Column | C-steel |
Beam | P-beam |
Laminate | Cold rollde steel plate |
Capacity | 100-500kg/layer |
Parts | Column, Beam,Laminate,Pins,etc. |
Surface finish | powder coating |
MOQ | 10 sets |
Common layers | 3-4 layers or as your request |
Aplication | School Laboratory,Office Building,Industry Warehouse,etc. |
Features:
1. All-purpose slot angle steel upright.
2. Cut-in composite usually with steel panel.
3. Simple and quick assembled and dismantled
4. Height of each level can be adjusted freely by pitch of 50mm
5. Loading and unloading by hand
6. Loading capacity 100-200kg per level
7. Powder coating finish and various color be available
manufacturing process
Raw materials(Wisco)→Cold rolling→Fixed
length→Punching(Welding)→Rectify→Surface powder
coating→Packing→Finished product
Surface treatment:
The process flow:Raw material→Unoil→Rust
removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing
1. Shelf surface treatment using electrostatic spray process of
epoxy, powder coating 60~80 microns
2. Electrostatic powder spraying adhesion level 0 in GB92865-88
standard requirement.
3. Hardness(abrasion resistance) as 100 times more than ordinary
lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely
the 2 h pencil test without scratches.
4.Corrosion resistance (hydroelectric acid) GB1771-91 more than 500
hours.
Accurate color configuration and material requirements:
1. Column: Color RAL5010——Blue;Material Q235,Wisco.
2. Beam:Color RAL2004——Orange;Material Q235,Wisco.
Packaging & Shipping
Standard Export Seaworthy Packing
Knockdown packing with plastic air bubble film package, save
transportation cost, safe for long distance transportation.
Required information from customers for quick quote:
1. the AUTOCAD drawing or draft drawing of warehouse or racking.
2. the size of the warehous, length, height, and width.
3. how many layers of the racking?
4. your pallet size.
5. max weight of pallet with cargo on.
6. special color requirement.
