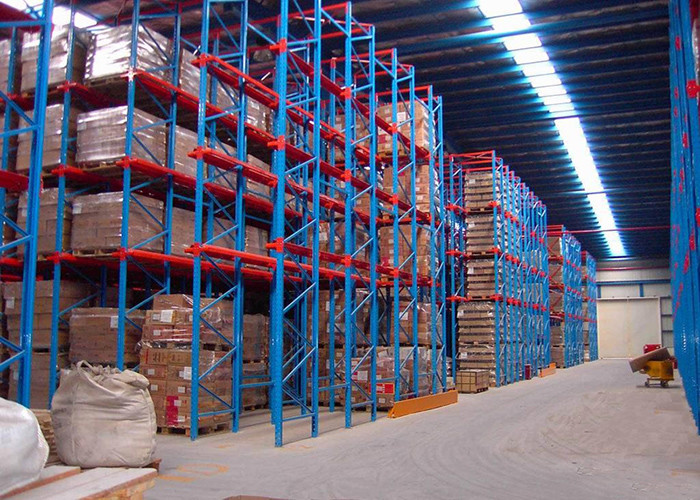

Storage warehouse drive in pallet rack storage metal steel drive
rack
Description:
1. Pallet drive in and drive through racking comprises upright
frames, beams, supportive arms and guide rails as main components.
2. Careful attention should be paid for this system as there are
fewer beams. It is necessary to install the top and lateral / back
cross bracings to keep it stable.
1. Drive in rack system is last in first out store system. Suits
for unified palletized goods.
2. Drive in rack system is a high density store system. It can use
most of the warehouse space. So it can save space, save store cost.
In the same area, push back rack can store much more goods.
3. Push back rack system doesn't need forklift to go into its
lanes, so enhance safety for forklift operator.
Features:
1. Maximized space utilization.
2. Improved SKU management.
3. Increased throughput and flow.
4. More efficient picking abilities with less chance of errors.
5. Less on-hand inventory and more inventory turns.
6. Improved on-time product delivery by consolidating orders with
less errors.
7. Increased product protection.
8. Reduced labor costs.
9. Improved safety.
10. Improved facility layout and appearance.
11. Improved ergonomics and reduced worker fatigue.
Product Name | Cold Rolled Steel coils Heavy Duty colorful drive in Rack made from
steel |
Material | Steel Q235 |
Loading Capacity | Customized and up to 4,000 Kg UDL/level |
Racking Height | Customized and up to 11,000 mm |
Racking Depth | 700-1,200 mm |
Beam Length | Customized and up to 3,600 mm |
Racking Finish | Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated
or Pre-galvanized) + Beams (Powder coated) |
Packing Details | Standard export seaworthy packing |
Specifications of Upright |
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2.0 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2.0 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2.0 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3.0 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3.0 | 21000 |
Specifications of Beam |
Type | | Item | Height(mm) | Width(mm) | Thickness(mm) |
P style Pipe(Step Beam) | | 1 | 50 | 30 | 1.5 |
2 | 60 | 40 | 1.5 |
3 | 80 | 50 | 1.5 |
4 | 110 | 70 | 1.5 |
5 | 140 | 70 | 1.5 |
6 | 160 | 70 | 1.5 |
Box Beam | | 7 | 80 | 50 | 1.5 |
8 | 100 | 50 | 1.5 |
9 | 110 | 50 | 1.5 |
10 | 120 | 50 | 1.5 |
11 | 140 | 50 | 1.8 |
12 | 160 | 50 | 2.0 |
Frames:Product Details
Frames are made up of two uprights with the corresponding
horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and
supports.
Arms:
There are two types of arms, which are single arm (left side and
right side single arms) and double arm. The single arm is used in
each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized.
The rails are designed without connectors to ensure uniform
loading.Top beams and top bracings:
Top beams and top bracings are used to increase integrity and
stability of the racking system.
