    Custom Industrial Drawer Storage Rack Steel Heavy Duty Mold Rack

    Ask Lasest Price
    Model Number : W-MC2017522-10
    Certification : ISO9001/14001
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 3500 Ton/Tons per Month
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

    Custom Industrial Drawer Storage Rack Steel Heavy Duty Mold Rack

    Industrial Heavy Duty Drawer Steel Mould Storage Racks, Customized by Clients

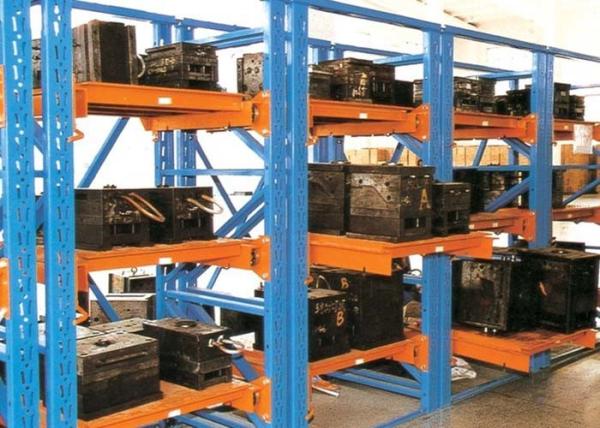

    Mold Storage Rack is also called drawer rack , mainly used for mold, hand chain hoists can be used at the top of mold rack, easily for loading and unloading, drawer plate can be freely moved with perfect protecting equipment, the overall rack is designed by assembling structure.

    Features:
    1. Add additional fixing equipment, can be used safely;
    2. Easy operation: with bearing assembly, sliding easy and can work with crane devices;
    3. Save space and cover less area, 3*4 standards shelf can be deposited with dozens dies;
    4. Simple structure: composed by a variety of components, easy for transport and assembly;

    Description:

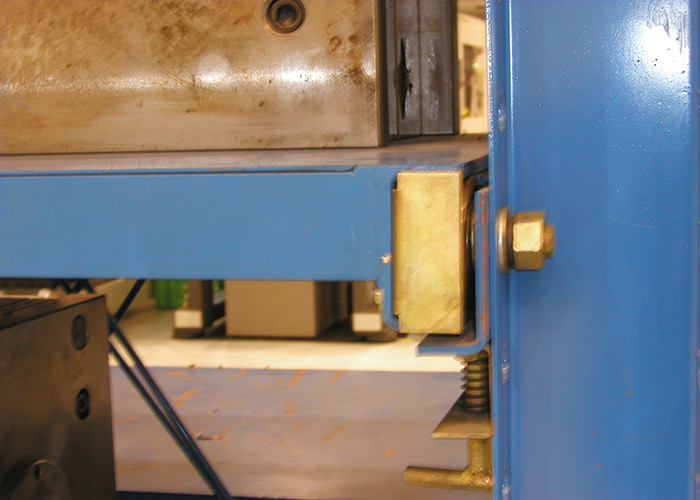

    Mould Storage Racks is mainly used for storage of all kinds of mould, which could be assembled with manual movable carriage on the top so as to easily take and retrieve the goods. The side rack was equipped with idler wheel rail on the bottom and the sliding shelf panel could be freely pulled out when loading. The middle type slide rack could carry less than 800KG/Drawer, and the heavy type slide rack could load more than 1000 KG/Drawer. The entire rack is section combination structure, which is convenient for transport, and the assembly is simple and fast and this rack possesses better safety protection device. Special drawer type mold rack can be ordered.

    Specification:

    Rack Height:

    1500mm; 1700mm; 1900mm; 2100mm

    Layer Amount:

    4-8 layers

    Finishing:

    Paint coated, hot dipped galvanized or as per customers’ requirement

    Frame Color:

    Blue, white,green or as customer's request

    Layer Sheet Specification:

    Cold rolled steel plate, 2mm thickness

    Upright Specification:

    25 ×25mm Channel Steel

    Beam Specification:

    50×30×0.8mm P-type Steel

    Bearing Capacity:

    Average 1000-3000kg/layer( Tile bearing)

    Feature:

    Easy extracting with drawwer plate and

    We accept OEM.


    Product Name
    tool storage mould rack
    Product No.
    MJ
    Max.loading capacity
    ≤3000kg/layer.
    Vertical Upright specification
    Customized
    Boxed Beam specification
    Customized
    Color
    Customized
    Material
    High-quality steel,Q235
    Application
    warehouse
    Finish
    Powder coated
    Feature
    Corrosion protection
    MOQ
    5pcs
    Payment Terms
    T/T ; L/C;Westerb Union
    Delivery Time
    Shipped in 20 days after payment
    Packing Details
    Packed in foam
    Certification
    SGS
    ISO9001
    AS4084:2012
    OEM&ODM
    Support
    Characteristic
    1. Requires site-storey building Combined platform shelf lowest point ≥4M, can make full use of space, doubling the Treasury area.
    2. Simple structure, low cost, open space on the lower, strong carrying ability, integrity, and security.
    3. Design aesthetics, structure and generous. Combined installation, easy removal, according to the ground, flexible design.
    4. The upper and lower floors cargo trucks Alternatively, lifting platforms, freight and other means.

    Custom Industrial Drawer Storage Rack Steel Heavy Duty Mold Rack
    Our Advantages:
    Direct manufacture
    High quality with competitive price
    Big production capacity
    OEM & ODM services offered
    Complete pre-sale service and after-sale services
    Diversified products for choices
    Customer's satisfaction up to 95%
