Heavy Roll Out mold storage rack | Die steel mold rack display
Drawing Racks
Description:

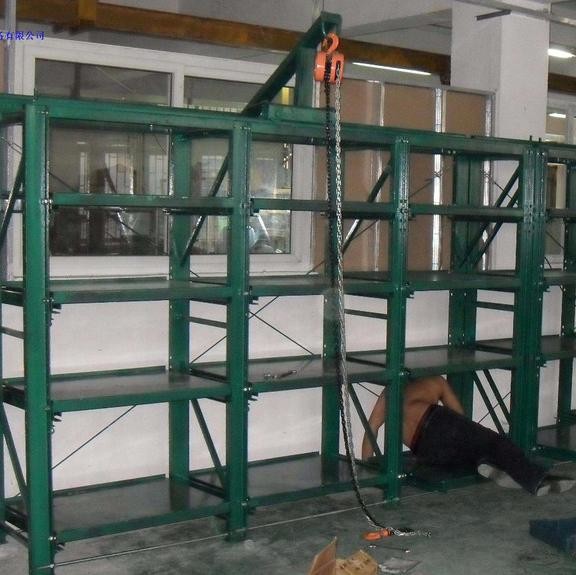

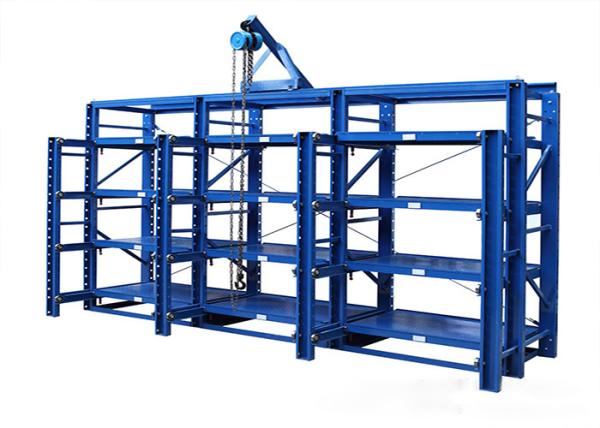

Mould Storage Racks is mainly used for storage of all kinds of
mould, which could be assembled with manual movable carriage on the
top so as to easily take and retrieve the goods. The side rack was
equipped with idler wheel rail on the bottom and the sliding shelf
panel could be freely pulled out when loading. The middle type
slide rack could carry less than 800KG/Drawer, and the heavy type
slide rack could load more than 1000 KG/Drawer. The entire rack is
section combination structure, which is convenient for transport,
and the assembly is simple and fast and this rack possesses better
safety protection device. Special drawer type mold rack can be
ordered.
Specification:
Storage heavy duty drawer die mold rack |
1. Features | Surface Metal storage warehouse mould placing rack treatmet: | power coated; |
Packing: | Neutral paper box or in bulk or upon clients requirements; |
Size | As customer's request; |
Container load: | 10-15 ton per 1x20 container, 20-25 ton per 1x40 container |
Payment terms: | TT/ Sight LC |
2. Material: | High grade Q235B Cold Rolled Steel |
3. Surface Treatment: | High-quality Powder Coating Finishing. |
4. Drawer die mold rack Load Capacity & Dimension: | 1) Loading capacity: 800kgs /pair beam. |
2) Height: 2000mm |
3) Depth: 600mm(Inside) |
4) Length: 900mm(Inside) |
Special sizes also available to specific storage needs. |
5. Main Parts Specs(mm): | 1) Drawers:50*50*T2mm or T4mm |
2) Upright: 10# C shaped Steel |
3) Horizontal & diagonal bracings: 40*24*1.5mm |
4) Anchors and all necessary components. |
6. Certificates. | CE certified, ISO9001, |
7. Quick Delivery. | Within 15 workdays (negotiable), according to quantity |
OEM Service is Available
Order → discuss → paper processing draft → your confirmation →
sample process→ your approval → bulking manufacture
1. let us know your requirement
2. we discuss with each other
3. get your confirmation
4. we draw paper processing draft for you
5. get your confirmation once again
6. we will provide you sample of pre-production
7. get your final approval
8. start the formal production
FAQ:
1. Q:Are you a factory or trading company?
A:We are a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located at Hengli Town, Dongguan city, China,
which is just 1 hour driving away from HK. You are always to pay a
factory tour to our factory.
3. Q:What is he material of your products?
A: The material is Q235 Cold rolled steel . We can also choose
material as customers’ requirement.
4. Q:How can I get some samples?
A: Just feel free to send us drawing, we will try to meet your
requirement and offer you some samples for reference or
confirmation.
