Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack
Description:

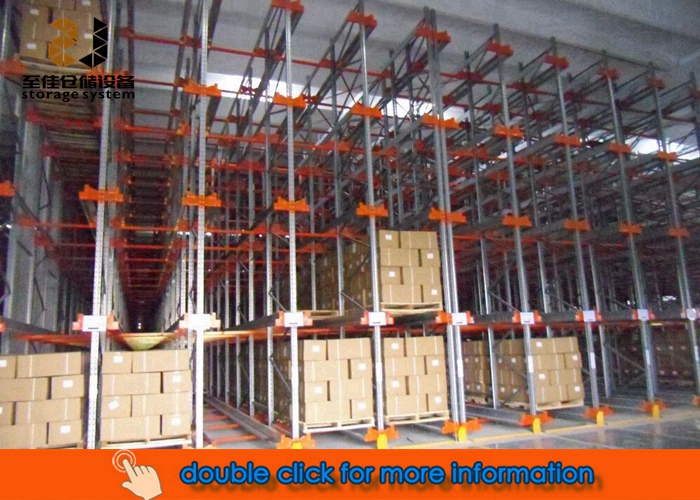

1. Drive in racking has a wonderful looks and scientific
structures.
2. The upright is made of the cold steel sheet, which ID bent and
rolled, there are two straight line of tear drop hole with 50mm
between two holes. So the beam can be adjusted every 50mm.
3. The beam is "P" shape beam, and the height is matched with the
shelf panels. The shelf panels are made of the cold roll steel
according to the requires.
4. It is convenient to assemble or disassemble and it is widely
used in supermarket, warehouse and other public fields.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
Product name | Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack |
Features | Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
Zhijia Service | Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
Specifications of Upright | ||||
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3 | 21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding
horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and
supports.
Arms:
There are two types of arms, which are single arm (left side and
right side single arms) and double arm. The single arm is used in
each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized.
The rails are designed without connectors to ensure uniform
loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and
stability of the racking system.
![]() |
