Assemble Or Welded Galvanization Easy Assemble Drive In Pallet
Racking
Description:

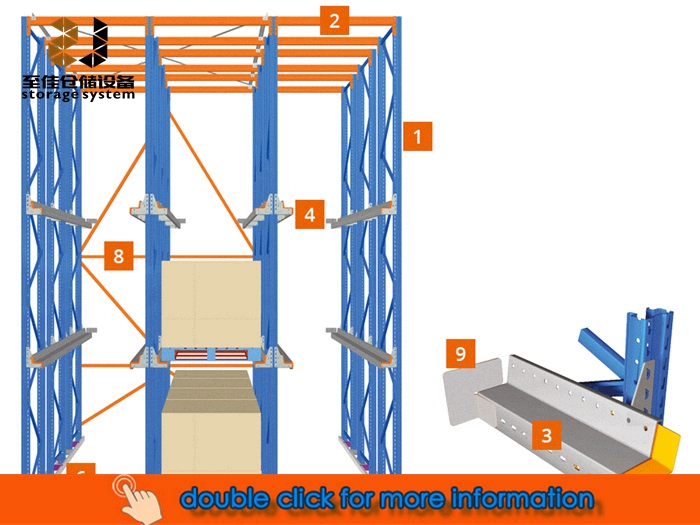

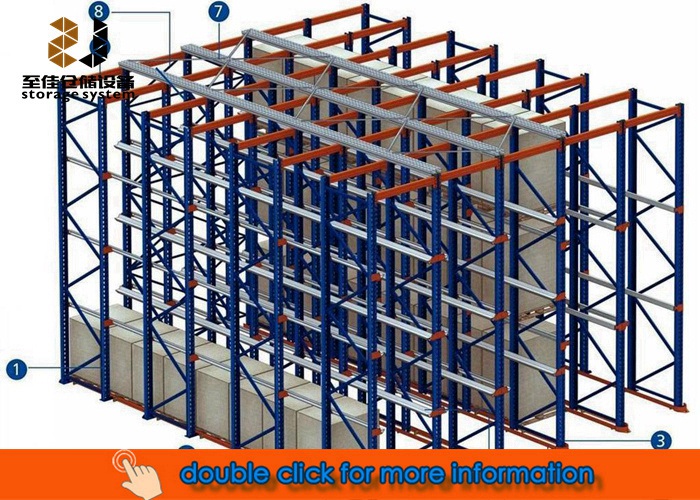

Drive in pallet racking consists of upright frame, pallet rail,
single and double side arm, top beam, back beam, single and double
side spacer, big and small top bracing, guide rail, upright
protector and so on.
Pallet weight is no more than 1500kg. The good stack height on the
pallet is no more than 2000mm.
1. Drive in rack system is last in first out store system. Suits
for unified palletized goods.
2. Drive in rack system is a high density store system. It can use
most of the warehouse space. So it can save space, save store cost.
In the same area, push back rack can store much more goods.
3. Push back rack system doesn't need forklift to go into its
lanes, so enhance safety for forklift operator.
Zhijia-drive in layout
plan.pdf
Freezing Room B,D Drive In
Rack-ZJ.pdf
Specification:
| Product name | Assemble Or Welded Galvanization Easy Assemble Drive In Pallet
Racking |
| Features | Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
| Zhijia Service | Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
| Specifications of Upright |
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3 | 21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding
horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and
supports.
Arms:
There are two types of arms, which are single arm (left side and
right side single arms) and double arm. The single arm is used in
each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized.
The rails are designed without connectors to ensure uniform
loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and
stability of the racking system.
