Cold Rolled Steel Galvanization Drive In Pallet Racking System
Description:

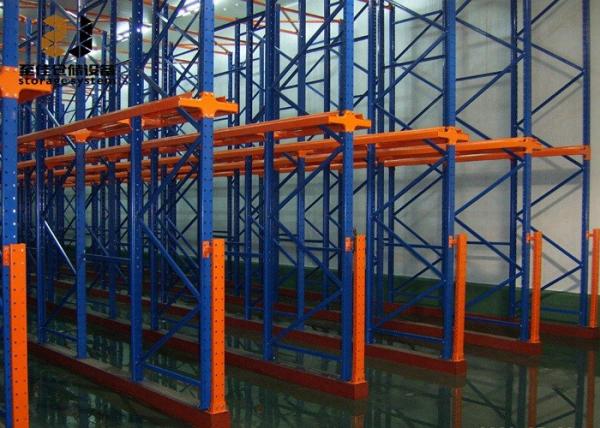

Drive In Pallet Racking System is also known as drive through racking,which consists of upright
frame, pallet rail, single and double side arm, top beam, back
beam, single and double side spacer, big and small top bracing,
guide rail, upright protector and so on. The theory of drive in
rack is to link the traditional rack together without special
channel,and it is designed for facilities that store large amounts
of the same items or large quantities of relatively few items, and
it is suitable for raw materials warehouses or transit warehouses
for periodical batch operations and high storage frequency. Pallet
is placed on the supporting rails to 10 meters high and 4-10
pallets deep, which makes the high-density storage possible.
1. Drive in rack system is last in first out store system. Suits
for unified palletized goods.
2. Drive in rack system is a high density store system. It can use
most of the warehouse space. So it can save space, save store cost.
In the same area, push back rack can store much more goods.
3. Push back rack system doesn't need forklift to go into its
lanes, so enhance safety for forklift operator.

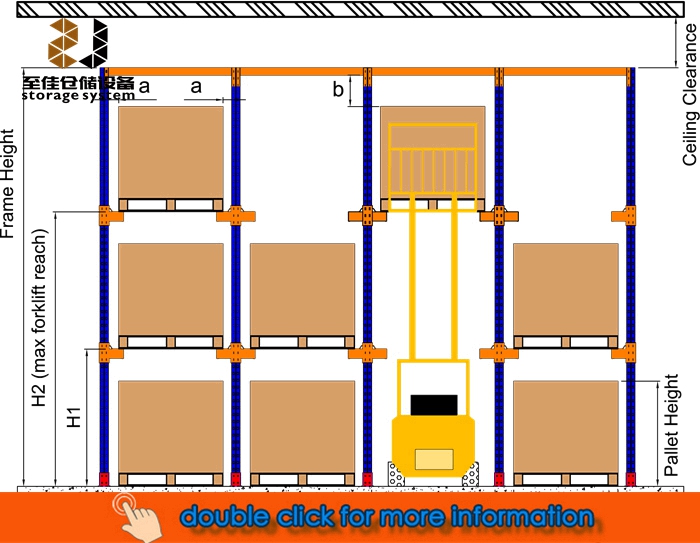

Zhijia-drive in layout
plan.pdf
Freezing Room B,D Drive In
Rack-ZJ.pdf
Specification:
| Product name | Cold Rolled Steel Galvanization Drive In Pallet Racking System |
| Features | Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
| Zhijia Service | Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
| Specifications of Upright |
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3 | 21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding
horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and
supports.
Arms:
There are two types of arms, which are single arm (left side and
right side single arms) and double arm. The single arm is used in
each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized.
The rails are designed without connectors to ensure uniform
loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and
stability of the racking system.
