Cold Rolled Steel Warranty 5 Years Flow Through Pallet Racking
Description:

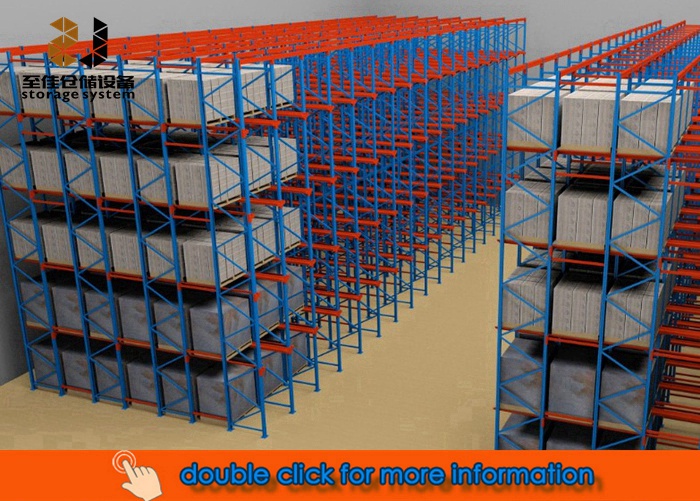

Into type shelves are widely used in high-volume, few varieties of
cargo storage, packing such goods unified, single product, such as:
food, tobacco, household appliances, chemicals, clothing, cold
storage warehouse.
1. Drive in rack designed for storaging volume, fewer varieties of
goods;
2. Forklift can pen the tray into the roadway and storing;
3. Access mode for the first-in, last-out;
4. Can greatly improve space utilization
5. Shelf: Guidable for pallet placing by tuck up bevel;
6. Concave bolted to avoid the influence of pallet moving;
7. Pin-type connector: high capacity, deform-proof, easy to
install/dismount, safe and reliable.
Zhijia-drive in layout
plan.pdf
Freezing Room B,D Drive In
Rack-ZJ.pdf
Specification:
| Product name | Cold Rolled Steel Warranty 5 Years Flow Through Pallet Racking |
| Features | Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
| Zhijia Service | Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
| Specifications of Upright |
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3 | 21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding
horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and
supports.
Arms:
There are two types of arms, which are single arm (left side and
right side single arms) and double arm. The single arm is used in
each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized.
The rails are designed without connectors to ensure uniform
loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and
stability of the racking system.
