    High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System

    Ask Lasest Price
    Model Number : W-MFC2017526
    Certification : ISO9001/14001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 SETS
    Delivery Time : 15-30 Days
    • Product Details
    • Company Profile

    High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System

    Easy Assemble Safety Lock 6 Layers Powder Coating Mobile Wire Shelving


    Description:

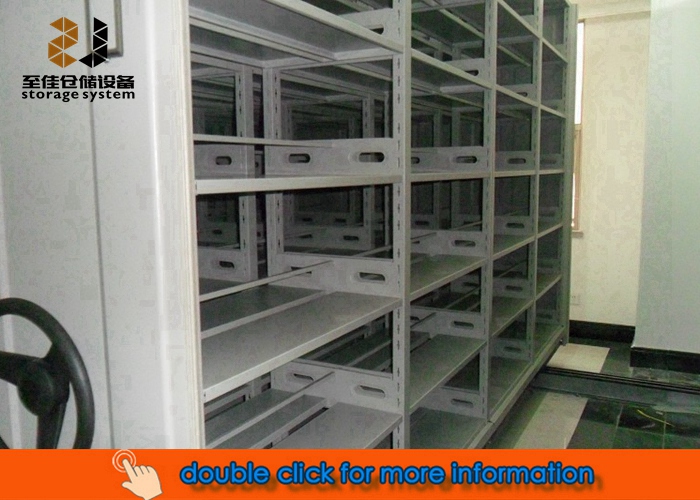

    Mobile Wire Shelving​ is of multiple bay types, where the compactor bodies are mounted on trolleys which sway on stainless steel tracks. Stainless Rotating wheel type handles are provided to turn the wheel and roll the trolleys with the help of series linkage and sprockets. The wheel knob can be protected with the help of a cam lock.

    Mobile shelves is mainly used for filings, documents and other securities storage, in advantages of confidential, high space utilization and easy access. And it is widely used in offices,warehouses,stock rooms,factories,hospitals,archive and document storage centres etc.

    Features:


    Raw material:High Qulity Cold Roll Steel

    Structure:Knock down,easy assemble

    Lock:Safety lock and 3-point key lock

    Layer of each:bay 6 layers or customized

    Thickness:0.8-2.5mm

    Surface:Electrostatic Powder Coating

    Spare parts:As your requirement

    Color:grey


    Solution:Available for free

    ODM&OEM:Available

    Certification:ISO90001/ISO14001

    Warranty:warranty 5 years

    Business Type:Manufacturer

    Advantage:Factory price

    Response time:30 mins


    Specification:


    Shelf bodyStand ColumnCold-roll steel1.5mmGB708
    Partition Whole body partition partition flange 25mm (reinforcing rib under the partition)Cold-roll steel1.0mmGB708
    Side plateCold-roll steel1.0mmGB708
    Upper cover plate (whole body side plate dimension 300X100mm)Cold-roll steel1.0mmGB708
    PanelCold-roll steel1.0mmGB708
    chassisMain beam and whole frame boardHot rolled steel plate3.0mmGB710
    (every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
    pathwayRailHigh quality steel plateSolid square tubeGB710
    Rail boxHigh quality steel plate26X95mmGB710
    Thickness 3.0
    PathwayHigh quality steel plate50X185GB710
    Thickness 3.0
    Transmission partHandle crankZG45Bothway overload clutchGB1285
    double axis transmission
    Transmission shaftSolid core 45 steelΦ20GB699
    Linkage railSeamless steel tubeΦ20X2.5GB699
    BearingPrecision bearingHR6204GB/T
    307.3-2005
    Chain wheelZG45 GB1135
    ChainFR420Φ8.5, pitch12.7GB1244
    breaking force 1800kg
    Idler wheelHT20-40Cast ironGb11351
     Sealing rubber stripMagnetic fluid sealant
    Dust shieldCold-roll steel1Gb710
    BarbHot rolled steel plate3.0mmGb711
